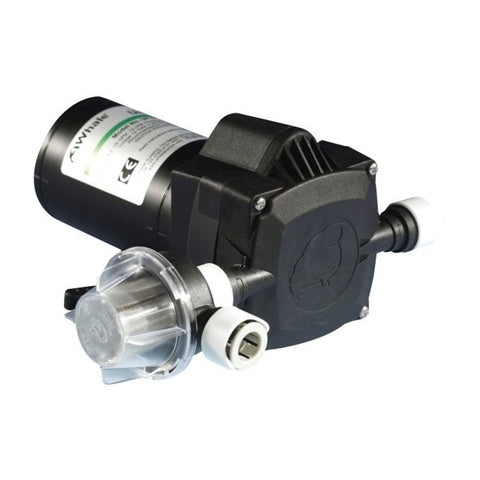

Whale UF1815 Universal Water Pump 18L 12V 45PSI w. Si delivers smooth constant water flow runs dry without damage.
WHY Universal?
Features and benefits:
Runs dry without damage
Self-priming up to 3 m (10 ft)
Smooth constant flow
Quiet operation
Extra protection and safety with wiring and pressure switch placed internally
Adapters included for mounting directly on 1/2" or 3/8" hose connections
Universal mounting arrangement fits any existing installation
Suitable for use with salt water and fresh water
Easy installation - suitable for 15 mm Quick Connect plumbing direct connection placed internally
Certifications:
EMC compliant
CE mark
Specifications:
Materials:
Pump housing: glass-filled polypropylene
Engine housing: aluminium, power-coated steel diaphragm
Valves, feet: monoprene
Gaskets: nitrile
Fasteners: stainless steel
Materials in contact with liquid:
Glass-filled polypropylene, monprene, nitrile, stainless steel
Service kit: W-AK1316 - Replacement head, W-AK1317 - Microswitch, W-AK1319
Cut Out Pressure Description
45 PSI / 3.1 Bar
Flow Rate Description
18 LPM (4.75 US GPM)
Supplied With
Strainer
Accumulator Recommended
Yes
Hose Size
19mm / 3/4"
Maximum Recommended Head
Discharge Head: 30 Meters (98 Feet)
Self Primes up to two
3 Meters (9.8 Feet)
Wire Size
Minimum: 2.5mm² (13 AWG)
Inlet Outlet
3/4" BSP Male Threaded Connections, 3/4" Hose
Fire
Whale
Series
Universal
Model
UF1815
Voltage Description
12V DC
Fuse
12A
Approvals
EMC Compliant, CE Marked, ISO 8846 MARINE (Ignition)
Height Description
125mm (4.9")
Width
230mm (9")
Length
240mm (9.4")
Country of Origin
United Kingdom
Warranty
2 Years
Wire size: 2.5 mm² (13 AWG)
